When ASIO4ALL makes sense in Ableton Live
ASIO4ALL is a compatibility layer for Windows WDM audio devices. In Ableton Live it can provide an ASIO path for a laptop sound chip, USB microphone, class-compliant device, or other hardware that does not include a reliable native ASIO driver. It does not turn built-in audio into a studio interface, add physical inputs, or improve the analog quality of the hardware.
Ableton recommends a manufacturer's native ASIO driver for an audio interface when one exists. That driver normally knows the hardware's channel names, clocking, direct-monitoring features, and supported buffer sizes. Use ASIO4ALL when the device has no suitable native driver, when you are testing built-in audio, or when a documented project requires a WDM endpoint inside an ASIO-only application.
The current verified ASIO4ALL release is 2.22, published July 23, 2026. The official installer is ASIO4ALL_2_22.exe, 557,232 bytes, and the stable download URL is hosted on asio4all.org.
| Situation | Best first choice | Why |
|---|---|---|
| Dedicated audio interface with a current driver | Manufacturer ASIO driver | Best access to hardware channels, clocking, and device-specific controls |
| Laptop speakers or headphone jack | ASIO4ALL | Creates an ASIO path to the built-in Windows audio endpoint |
| USB microphone plus built-in output | ASIO4ALL, with caution | May expose both WDM devices, but mixed clocks can be less stable |
| Only editing or arranging, no live input | Ableton's normal Windows audio option may be enough | Lowest latency is less important when you are not monitoring live input |
Install and select ASIO4ALL v2 in Ableton
Close Ableton Live before installing the driver so Live refreshes its audio-driver list at the next start. Use the verified official-source button on this page, complete the normal installer, and reopen Live. Do not download a separate ‘Ableton ASIO4ALL’ package: the normal official ASIO4ALL installer is the correct file.
Ableton renamed Preferences to Settings in newer releases, so you may see either label. The path and choices are otherwise the same. If ASIO4ALL v2 is missing after installation, close Live completely, confirm the installer finished, restart Windows if required, and check the Audio page again.
- Open Audio settings
In Live, choose Options → Settings or Options → Preferences, then open the Audio tab.
- Choose the ASIO driver type
Set Driver Type to ASIO. This changes the device list to installed ASIO drivers.
- Select ASIO4ALL v2
Choose ASIO4ALL v2 as the Audio Device, then click Hardware Setup to open the control panel.
- Keep the first test simple
Enable one known output and, only if recording is needed, one input. Test before enabling Bluetooth, HDMI, webcam, monitor, and unused USB endpoints.
Official references: Ableton's ASIO4ALL setup guide and the ASIO4ALL 2.22 release notes.

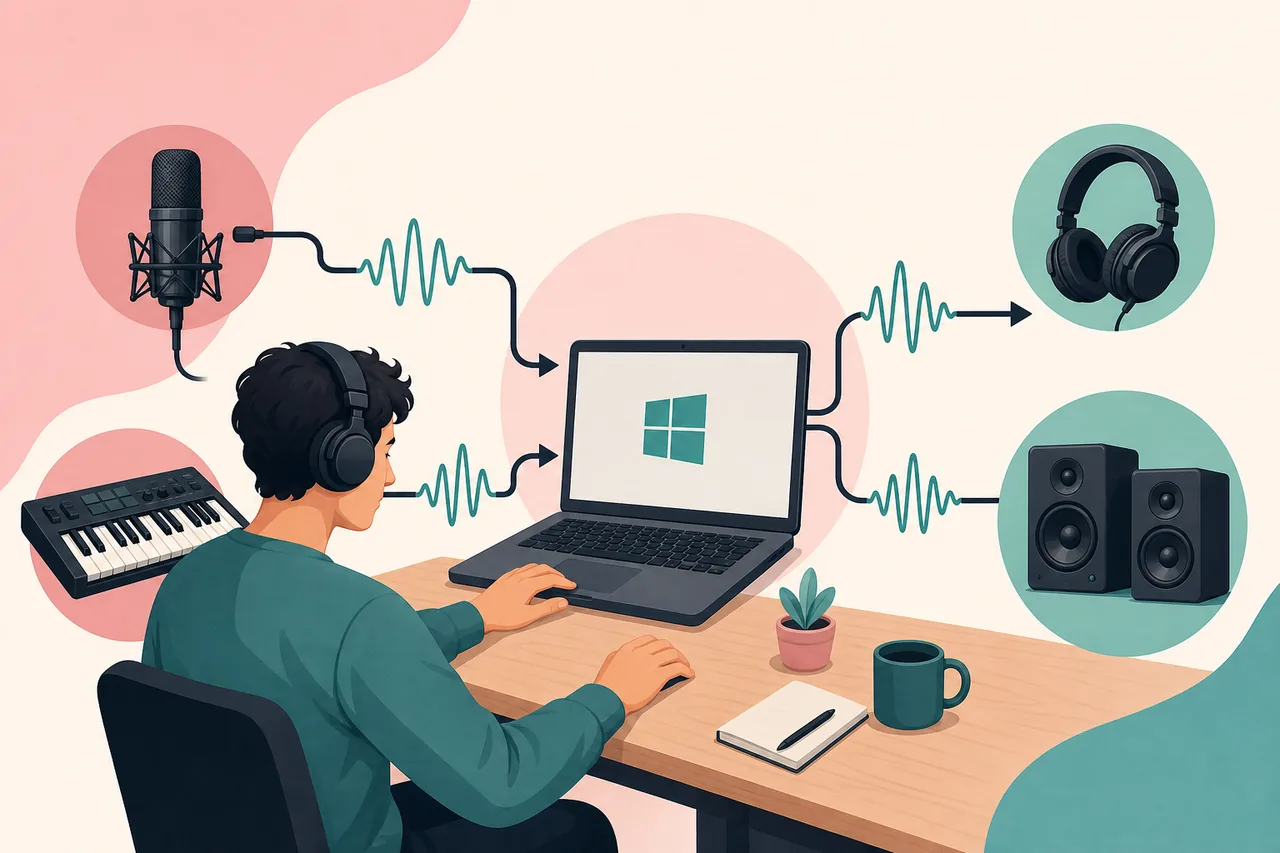

Configure Ableton inputs, outputs, and monitoring
After selecting the driver, click Input Config and Output Config in Live. Enable only the mono or stereo channel pairs you actually plan to use. Enabling every channel makes routing harder to read and can expose endpoints that are unavailable or owned by another application.
For a microphone, create an audio track, choose the correct input in the track's Audio From menu, arm the track, and use Auto or In monitoring only when you need to hear the live signal. If the meter moves but you hear nothing, the input is working; check the Master output, Output Config, ASIO4ALL output endpoint, and physical playback device.
ASIO4ALL may take exclusive control of an endpoint while Live is open. If a browser, game, meeting app, or media player becomes silent, that does not automatically mean the driver failed. Close the competing app, use the same sample rate in Windows and Live, or choose a separate output for system audio.
If the endpoint list is confusing, first review the ASIO4ALL control-panel guide and prepare a simple device baseline with Offline Settings.

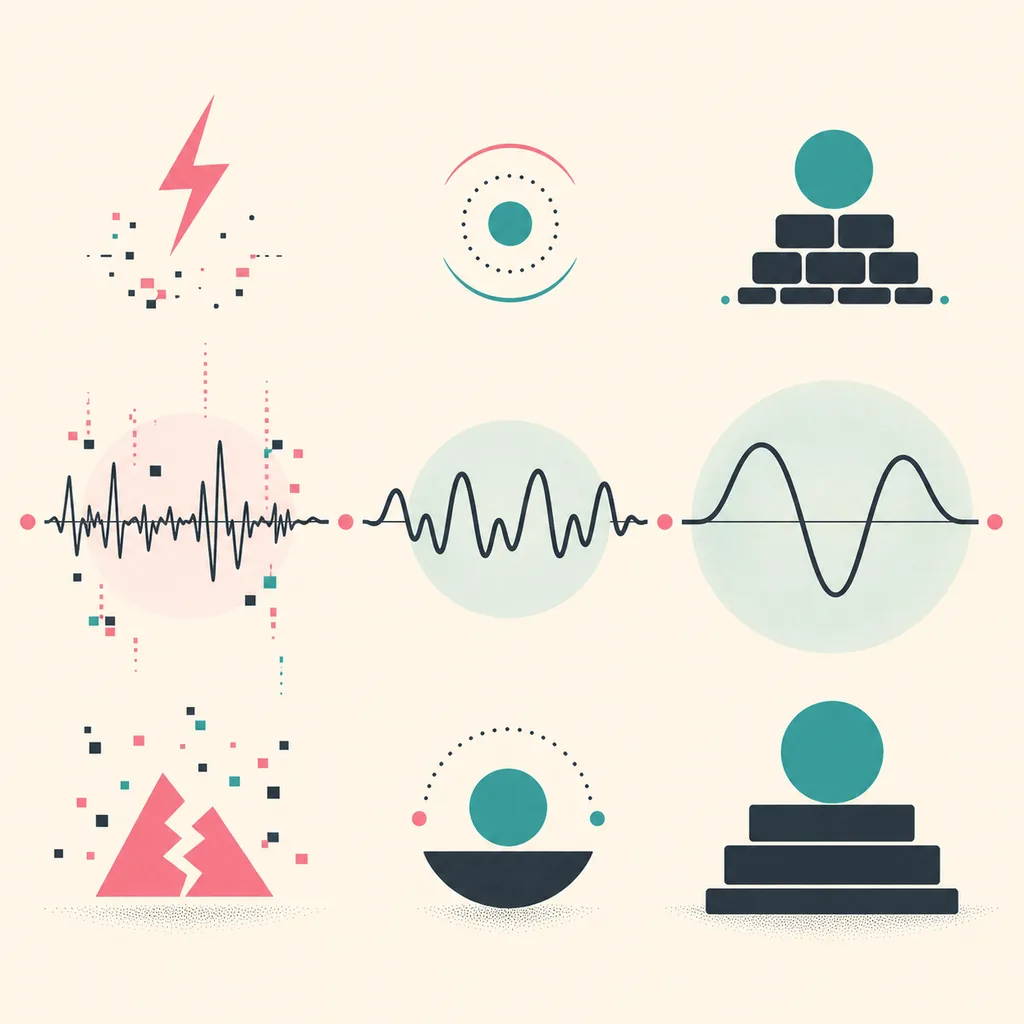

Choose buffer size and sample rate without chasing zero latency
Start at 256 samples with the project and Windows device set to the same sample rate. Record or monitor for several minutes before lowering the buffer. A smaller buffer reduces monitoring delay but gives the CPU and driver less time to process each block; a larger buffer improves stability at the cost of more latency.
If changing the ASIO4ALL buffer does not appear to update Live, stop playback, close the Hardware Setup panel, and check Live's displayed buffer and latency again. Some endpoints accept only specific sizes, and an unavailable device may keep an old value visible. Restarting Live is a valid diagnostic step after changing driver-level settings.
Do not compare drivers with different projects, sample rates, plugins, or monitoring paths. Use the same Live set, one input, one output, and the same test recording. A stable 256-sample configuration is more useful than a 64-sample setting that crackles or changes after reopening the project.
| Buffer | Good starting use | What to watch |
|---|---|---|
| 64–128 samples | Live playing or vocal monitoring on a capable system | Higher CPU pressure, crackles, and dropouts |
| 256 samples | Recommended first test for most built-in and class-compliant devices | Balanced monitoring delay and stability |
| 512 samples | Recording without software monitoring or a heavier project | Noticeable live-monitoring delay |
| 1024 samples | Mixing, editing, or troubleshooting a stressed project | Not suitable for comfortable live performance |
Fix no sound, missing inputs, crackles, or silent Windows apps
Troubleshoot from the signal path instead of reinstalling immediately. Confirm that Live uses ASIO4ALL v2, one output is active in the ASIO4ALL panel, that pair is enabled in Output Config, the Master track points to it, and the physical headphones or speakers are connected to the same device. For recording, repeat the chain from the hardware input through Input Config and the armed track.
A red cross, unavailable icon, or inactive endpoint in the ASIO4ALL panel usually means another application owns the device, the device is disconnected, or its format conflicts with the current session. Close browsers, communication apps, media players, and other DAWs. Then reopen Live and test one endpoint before adding others.
For crackling, increase the buffer, match sample rates, disable unused endpoints, remove unstable USB hubs, and temporarily bypass CPU-heavy plugins. For system audio that disappears only while Live is open, use a different Windows output, close Live when system playback is required, or use the manufacturer's multi-client native driver if the hardware provides one.
| Problem | Likely cause | First fix |
|---|---|---|
| Live has no output | Wrong endpoint or Output Config pair | Enable one output in both ASIO4ALL and Live |
| Track meter moves but no sound | Master routing or output device mismatch | Check Master Out and the physical playback device |
| Input is missing | Input endpoint or mono/stereo pair is disabled | Enable the device, Input Config channel, and track input |
| Crackles or dropouts | Buffer too small, sample-rate mismatch, or CPU load | Raise the buffer and simplify the endpoint list |
| Browser or meeting app is silent | Exclusive or single-client device access | Close the competing app or use a separate output/native driver |
Ableton verification checklist
Keep the Live set, device, and sample rate unchanged while testing. Change one item at a time so the result is reproducible.
- Live shows ASIO as Driver Type and ASIO4ALL v2 as Audio Device.
- Only the intended input and output endpoints are active.
- Input Config and Output Config expose the channel pairs used by the project.
- A short recording plays back without missing channels, crackles, or increasing delay.
- The official ASIO4ALL 2.22 source and 557,232-byte installer were verified on July 29, 2026.
ASIO4ALL and Ableton FAQ
Do I need ASIO4ALL for Ableton Live?
Only when the Windows audio device does not have a suitable native ASIO driver. Prefer the manufacturer's current ASIO driver for a dedicated audio interface.
Where do I select ASIO4ALL in Ableton?
Open Options → Settings/Preferences → Audio, set Driver Type to ASIO, choose ASIO4ALL v2, and open Hardware Setup.
What buffer size should I use with Ableton?
Start at 256 samples. Try 128 for live monitoring after the session is stable, or 512–1024 for heavy editing and mixing.
Why does other Windows audio stop when Ableton uses ASIO4ALL?
ASIO4ALL may hold the selected endpoint for Live. Close competing apps, match sample rates, select a separate system output, or use a multi-client native driver when available.
Why is there no sound after selecting ASIO4ALL v2?
Check the active output in the ASIO4ALL panel, Live's Output Config, the Master output pair, and the physical device. Disable unused endpoints and close apps that may own the device.
Is ASIO4ALL 2.22 the current version?
Yes. The official 2.22 release post and stable 557,232-byte installer were verified on July 29, 2026.
